Dell TB16 3GMVT Thunderbolt UHD 4K Docking Station, 240W PSU, 12 Mth Wty [TB16]

Dell TB16 452-BCOU Thunderbolt 4K Dock Description:

The Dell Thunderbolt Dock with Intel Thunderbolt 3 technology is the ultimate docking solution. With one cable, power users can provide power to their laptop, connect to three FHD displays or two 4K displays or one 5K display at 60Hz, transfer files (such as video editing files) at up to 40 Gbps to Thunderbolt 3 devices, andconnect to USB and audio peripherals.

Cable docking is the new normal. With the Dell Thunderbolt Dock users can connect a single cable to the Thunderbolt 3 port on their laptop to provide power and high-speed data and video. With the ability to connect to three FHD displays or two 4K displays or a single 5K display @ 60 Hz and all your essential peripherals, the Dell Thunderbolt Dock TB16 provides the ultimate performance and flexibility for docking in a compact form factor.

5120 x 2880 (5K) @ 60Hz only supported if 1) A USB Type C to Dual DisplayPort 1.2 adapter is plugged into the Thunderbolt 3 port on the back of TB16 which is then connected to two DisplayPort cables plugged into the 5K monitor or 2) Systemwith discrete graphics has displaysetting set to discrete and 5K monitor is connected to mDP and DP ports of the dock with DisplayPort 1.2 cables

The Dell Thunderbolt Dock TB16 can provide power up to 130W to your Thunderbolt 3 laptop and can also provide up to 60W of power to attached Thunderbolt 3 peripherals. Users can also charge smartphones or tablets with the USB 3.0 port with PowerShare.

130W of power is exclusive feature to supported Dell platforms only. 3rd party products will only receive up to 60W if they accept voltage at 5V or 19.5V

With Dell Precision, Latitude or XPS laptops with a Thunderbolt 3 port, end-users can charge the system with up to 130W, can wake the system upon docking, and can use the convenient dock button, while IT Managers can easily deploy images to attached systems, lock down dock ports and deploy updates to the dock.

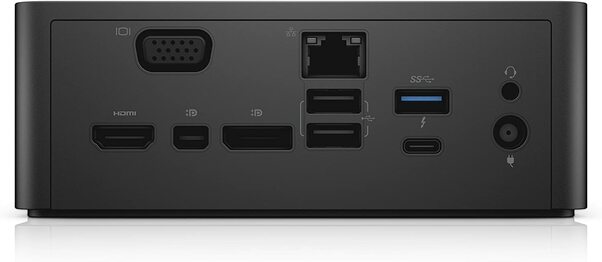

• Video ports: VGA, mDP, DP, HDMI, Thunderbolt 3
• Two USB 2.0 ports
• Three USB 3.0 ports (one withPowerShare)
• One Thunderbolt 3 port
• Speaker output (rear)
• Combo audio (front)
• Gigabit Ethernet
• Kensington Lock Slot
• 7.4 mm barrel power port for Dell 180W/240W AC adapters

Dell TB16 452-BCOU Thunderbolt 4K Dock Specifications:
